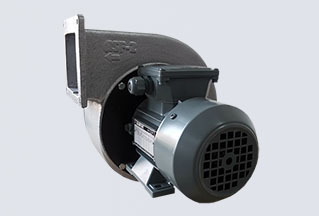

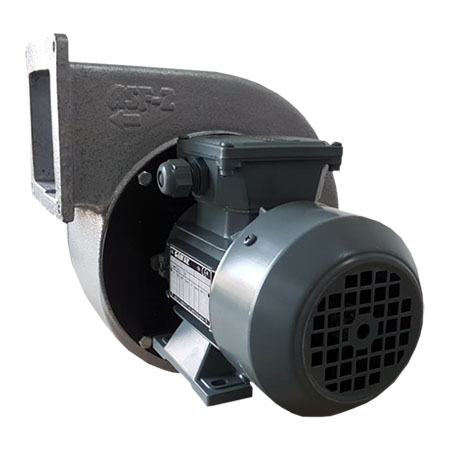

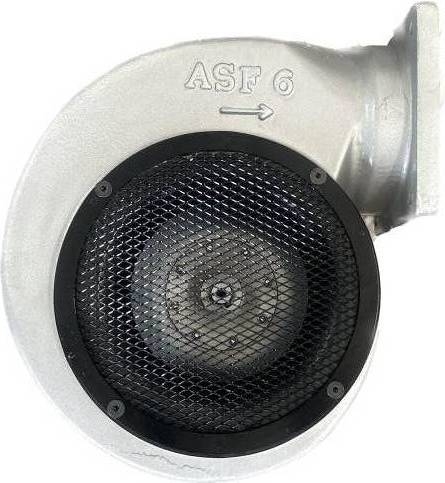

Aluminum Casting Snail Fan
Aluminum Casting Snail Fan
Ventilation Fan, Cooling Heating Fan
Areas of Use:
Boilers; In the heating industry for the purpose of providing secondary air in a controlled manner in solid and liquid fuel combustion
In the ventilation of closed environments
In industrial machines belonging to the jewelry sector
In the textile industry
In mines and mushroom farms
In plastic injection machines
In the supply of combustion air for gas and diesel burners
In humid and damp environments
In the greenhouse sector
In chicken coops
It is used in many areas of the manufacturing industry.
Trifaze Alüminyum Döküm Gövdeli Sık Kanatlı Salyangoz Fanlar
| ÜRÜN KODU | MOTOR GÜCÜ | DEVİR | DEBİ | BASINÇ | SES | |
| HP | KW | (d/d) | (m³/h) | (mm/ss) | (DBA) | |
| ASF_MİNİ 120_53 TRFZ | 1/4 | 0,18 | 2800 | 320/300 | 15 | 22 |
| ASF1 140_62 TRFZ | 1/3 | 0,25 | 2800 | 650/750 | 26 | 25 |
| ASF2 160_80 TRFZ | 1/2 | 0,37 | 2800 | 1600/1650 | 35 | 30 |
| ASF3 180_90 TRFZ | 3/4 | 0,55 | 2800 | 1900/2000 | 50 | 34 |
| ASF4 216_90 TRFZ | 1 | 0,75 | 2800 | 2400/2500 | 60 | 37 |
| ASF4 216_90 TRFZ | 1/5 | 1,1 | 2800 | 2900/3000 | 60 | 40 |
| ASF5 250_90 TRFZ | 2 | 1,5 | 2800 | 3400/3500 | 70 | 44 |
| ASF5 250_90 TRFZ | 3 | 2,2 | 2800 | 3900/4000 | 90 | 49 |
| ASF6 250_100 TRFZ | 3 | 2,2 | 2800 | 4400/4500 | 120 | 51 |
| ASF6 250_100 TRFZ | 4 | 3 | 2800 | 4900/5000 | 150 | 55 |
| ASF7 300_110 TRFZ | 5,5 | 4 | 2800 | 6000 | 170 | 60 |
| ASF7 300_100 TRFZ | 7,5 | 5,5 | 2800 | 7000 | 210 | 65 |
| ASF8 315_110 TRFZ | 7,5 | 5,5 | 2800 | 8000 | 230 | 69 |
| ASF8 315_120 TRFZ | 10 | 7,5 | 2800 | 10000 | 260 | 75 |
Monofaze Alüminyum Döküm Gövdeli Sık Kanat Salyangoz Fanları
| ÜRÜN KODU | MOTOR GÜCÜ | DEVİR | DEBİ | BASINÇ | SES | |
| HP | KW | (d/d) | (m³/h) | (mm/ss) | (DBA) | |
| ASF MİNİ 120-53 MONO | 1/4 | 0,18 | 2800 | 320/300 | 15 | 22 |
| ASF1 140_62 MONO | 1/3 | 0,25 | 2800 | 650/750 | 26 | 25 |
| ASF2 160_80 MONO | 1/2 | 0,37 | 2800 | 1600/1650 | 35 | 30 |
| ASF3 180_90 MONO | 3/4 | 0,55 | 2800 | 1900/2000 | 50 | 34 |
| ASF4 216_90 MONO | 1 | 0,75 | 2800 | 2400/2500 | 60 | 37 |
| ASF4 216_90 MONO | 1/5 | 1,1 | 2800 | 2900/3000 | 60 | 40 |
| ASF5 250_90 MONO | 2 | 1,5 | 2800 | 3400/3500 | 70 | 44 |
| ASF5 250_90 MONO | 3 | 2,2 | 2800 | 3900/4000 | 90 | 49 |
| ASF6 250_100 MONO | 3 | 2,2 | 2800 | 4400/4500 | 120 | 51 |
| ASF6 250_100 MONO | 4 | 3 | 2800 | 4900/5000 | 150 | 55 |
