Single Inlet Radial Fans - OBRA-260

Single Inlet Radial Fans - OBRA-260

Single Inlet Radial Fans - OBRA-260

» It operates in the air flow range of 1,300 m³/ h – 2,650 m³/h.
» The body is made of DKP sheet metal and protected against corrosion with electrostatic powder paint.
» The impeller is made of metal galvanized sheet metal and its dynamic balance is taken.
» By using protective wire on the intake ports of our fans, foreign objects coming from outside are prevented from damaging the fan.
» In our OBRA-260-2K-M and OBRA-260-2K-T models, GAMAK, VOLT or WATT etc. external electric motors are used.
» Optionally, air flow and pressure can be adjusted with a speed control device.
» Insulation: Class B
» Protection Class: IP 44

BRAND: AYAS

TEKNİK DEĞERLER / TECHNICAL PARAMETERS

Tip / Type	Voltaj (V)	Frekans (Hz)	Güç (W)	Akım (A)	Kondansatör (μF/Volt)	Devir (d/d)	Hava Debisi (m³/h)	Ses Seviyesi (dB(A))	Ağırlık (Kg)	Ambalaj (Adet)
OBRA-260-4K-M	220	50	350	1,20	7 / 400	1400	1300	50	10,25	1
OBRA-260-4K-T	380	50	220	1,40	-	1400	1350	46	10,15	1
OBRA-260-2K-M	220	50	750	5,20	30 / 500	2800	2500	53	13,95	1
OBRA-260-2K-T	380	50	750	2,50	-	2800	2650	55	12,60	1

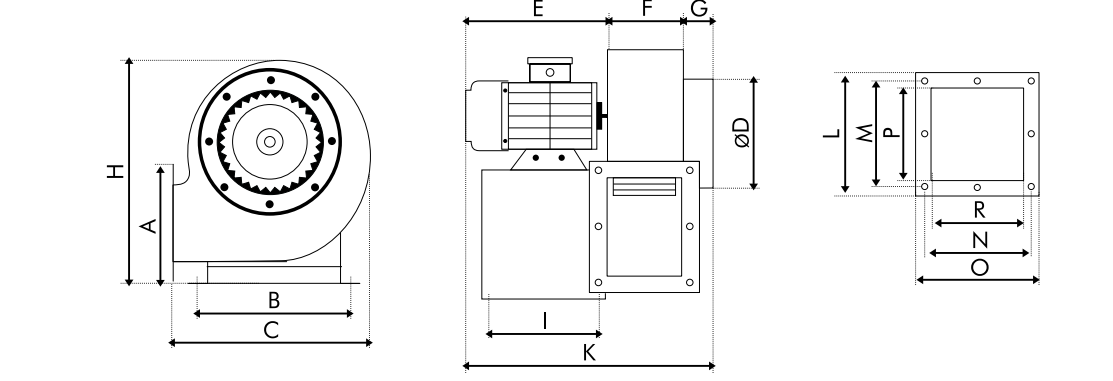

TEKNİK ÇİZİM VE ÖLÇÜLER / TECHNICAL DRAWINGS AND DIMENSIONS (mm)

Tip / Type	A	B	C	D	E	F	G	H	I	K	L	M	N	O	P	R
OBRA-260-4K-M	212	208	340	180	202	117	40	367	120	362	205	90	90	165	148	110
OBRA-260-4K-T	212	208	340	180	202	117	40	367	120	362	205	90	90	165	148	110
OBRA-260-2K-M	212	208	340	180	202	117	40	367	120	362	205	90	90	165	148	110
OBRA-260-2K-T	212	208	340	180	202	117	40	367	120	362	205	90	90	165	148	110
